SOOT BLOWER SPARES
PRODUCTS
Air Systems Ltd is in the field of manufacturing all the fast moving
spares for different makes of Soot Blowers .Our extensive know how in the
Soot Blower area is demonstrated in the usage of these equipments in various
Thermal Power Plants & Boiler installations in different segment of
industries such as Steel, Power, Sugar, Refineries, Fertilizer Plants,
etc.We are in a position to offer spares for all types of soot blowers &
wall deslaggers.
Our product range consists of wear parts for Diamond, Clyde Bergemann, Copes Vulcan and other popular makes of soot Blowers used globally by different Industrial segments and boiler Installations
- SPARES FOR DIAMOND MAKE OF LONG RETRACTABLE SOOT BLOWERS
-

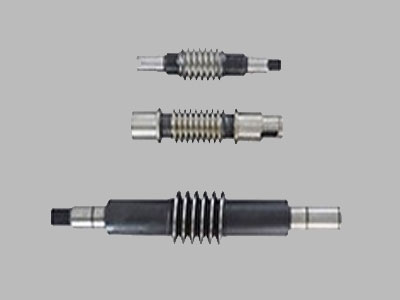

SL NO. DESCRIPTION 1 WHEEL MECHANISM PARTS SET 2 APPLICATOR UNIT 3 GLAND MEMBER 4 CAM LEVER (RIGHT ) 5 CAM LEVER ( LEFT ) 6 SWING BLOCK ( RIGHT) 7 OSCILLATING BLOCK ( LEFT ) 8 HOOK HEAD KEY 20 # 9 SPINDLE 10 SPACER RING 11 SHOULDER BOLTS Q235AF 12 POPPET MEMBER 13 VALVE STEM ASSEMBLY MEMBER 14 LARGE PACKING ROOM 15 PACKING ROOM 1CR13 16 PACKING NUT HPB63-3 17 SPRING GLAND Q235AF 18 VALVE SPRINGS 1CR18NI9TI 19 INNER TUBE FLANGE 20 20 INNER TUBE NUT 20 21 VALVE MOUNTING PLATE # 15-25 22 AIR VALVE MEMBER 3/4 '' 23 INTERNAL AND EXTERNAL CONNECTORS 24 WORM 40: 1 20CRNIHO 25 WORM 40: 1 BRONZE 26 PACKING WASHER 27 PACKING BOLT 28 LARGE ROOM PACKING FLANGE 29 FLAT ( THE STRIKER PLATE ) Q235AF 30 STRIKER 31 COUPLING FLANGE 32 INNER TUBE FLAT KEY 33 CAR RUNNING ROLLER MEMBER 34 GUIDE WHEEL ASSEMBLY 35 RACK L = 1.4M 36 GREASE FITTING 45 ° M10X1 37 PLUG 1/2 ' ' 38 INTERMEDIATE LEVER Φ6 SL NO. DESCRIPTION 39 AUXILIARY BRACKET MEMBER 40 COMPANION FLANGE 41 POPPET VALVE REGULATING DISC 42 WALL BOX MEMBER ( POSITIVE ) 43 ROLLER BEARINGS 44 LONG BLOWING MOTOR GEARBOX 45 WASHER 46 SEALING PLATE 47 THE FRONT END OF THE INNER TUBE BRACKET 48 DEADBOLT 49 OUTER TUBE BRACKET 50 CABLE CONTROL ASSEMBLY (RIGHT ) 51 CONTROL CABLE ASSEMBLY ( LEFT ) 52 DEADBOLT 53 INNER TUBE Φ60X4 1CR18NI9TI 54 INNER TUBE Φ60X4 1CR18NI9TI STROKE 3.0M 55 INNER TUBE Φ60X4 1CR18NI9TI STROKE 3.5M 56 INNER TUBE Φ60X4 1CR18NI9TI STROKE 4.0M 57 INNER TUBE Φ60X4 1CR18NI9TI STROKE 4.5M 58 INNER TUBE Φ60X4 1CR18NI9TI STROKE 5.0M 59 INNER TUBE Φ60X4 1CR18NI9TI STROKE 5.5M 60 INNER TUBE Φ60X4 1CR18NI9TI STROKE 6.0M 61 INNER TUBE Φ60X4 1CR18NI9TI STROKE 6.5M 62 INNER TUBE Φ60X4 1CR18NI9TI STROKE 7.0M 63 INNER TUBE Φ60X4 1CR18NI9TI STROKE 7.5M 64 INNER TUBE Φ60X4 1CR18NI9TI STROKE 8.0M 65 SOOT BLOWING GUN ( WITH NOZZLE ) Φ89X5.515CRMO 66 SOOT BLOWING GUN ( WITH NOZZLE )STROKE 3.0M 67 SOOT BLOWING GUN ( WITH NOZZLE )STROKE 3.5M 68 SOOT BLOWING GUN ( WITH NOZZLE )STROKE 4.0M 69 SOOT BLOWING GUN ( WITH NOZZLE )STROKE 4.5M 70 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 5.0M 71 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 5.5M 72 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 6.0M 73 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 6.5M 74 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 7.0M 75 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 7.5M 76 SOOT BLOWING GUN ( WITH NOZZLE ) STROKE 8.0M - SPARES FOR CLYDE BERGEMANN "PS – SL” SERIES OF SOOT BLOWERS
-
SL NO. DESCRIPTION 1 Valve Assembly, DN80 PN60. Ext –Adjustable, Inlet Ø55 2 Valve Internal Assembly, DN80 PN63 , Ext. Adjustable , Inlet Ø55 3 Valve Disc w/Stem , Inlet Ø55 4 Plug –Valve , Inlet Ø55 , Valve Internal Assembly 5 Stem –Valve, Valve Internal Assembly 6 Nut Valve Plug, Valve Internal Assembly 7 Plate Retaining 8 Gasket 9 Seat Valve, Inlet Ø55 , Valve Internal Assembly 10 Valve Stem Guide Assembly 11 Disc-Pressure Ctrl, Valve Stem Guide Assembly 12 Hex Screw Assembly 13 Packing Set, Valve Stem , Valve Internal Assembly 14 Spring- Valve, Valve Internal Assembly 15 Nut Adjusting Valve Internal Assembly 16 Key- Horseshoe – Valve Internal Assembly 17 Gland- Packing, Valve Internal Assembly 18 Vent Valve Assembly 19 Roller Chain 20 Chain Link Cranked 21 Chain Link Spring Lock 22 Sprocket Assembly 23 INA Track Roller 24 Eccentric Bolt 25 Retaining Ring SL NO. DESCRIPTION 26 Perforated Bar Assembly , Left Side PS Assembly 27 Trip Pin Assembly, P5 28 Track Wheel Assembly 29 Pinion 30 Spacer Ring Short 31 Spacer Ring Long 32 Bail Bearing 33 Chain Guide Assembly 34 Lance Hub Assembly .PS 35 Ball Bearing 36 Retaining Ring 37 Washer 38 Cover Bearing , Front ,88.9 39 Cover Bearing , Rear ,88.9 40 Guiding Bush 41 Retaining Ring 42 Bush Stuffing Box 43 Gland , Stuffing Box Machined Galvanised 44 Snap Ring 45 Bush Guide , Stuffing Box Packing Assembly 46 Spacer , Stuffing Box Packing Assembly 47 Feed Tube Assembly 48 Lance Tube Assembly 49 Lance Tube Guide, 88.9,V=60 Rolling 50 Deep Grv Ball Bearing 51 Rack - O & M SPARES FOR COPES VULCAN SOOT BLOWERS.
-

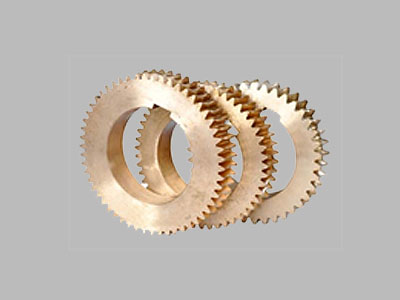

SL NO. ITEM 1 Gear Retainer 2 Oil Seal A40 x 63 x12 3 Oil Seal A42 x 63 x10 4 Shaft 5 Bushing 6 Spindle 7 Gland Follower 8 Idler Shaft 9 Track Wheel Axle 10 Worm Gear 11 SBV Head Assembly 12 Valve Stem Assembly 13 Packing Gland 14 Gland Bushing 15 Valve Stem Cap 16 Spring Retainer SL NO. ITEM 17 Valve Spring 18 Packing Set 19 Air Valve 20 Roller Bearing Assembly 21 Bearing And Yoke Plate 22 Roller Pin 23 Roller 24 Limit Switch (Stop) 25 Connector Link for Traverse Chain Assembly 26 Off Set Link for Traverse Chain Assembly 27 Traverse Chain for Traverse Chain Assembly 28 Connector Link for Rotary Chain Assembly 29 Off Set Link for Rotary Chain Assembly 30 Rotary Chain for Rotary Chain Assembly 31 Feed Pipe Assembly 32 Lance Assembly
